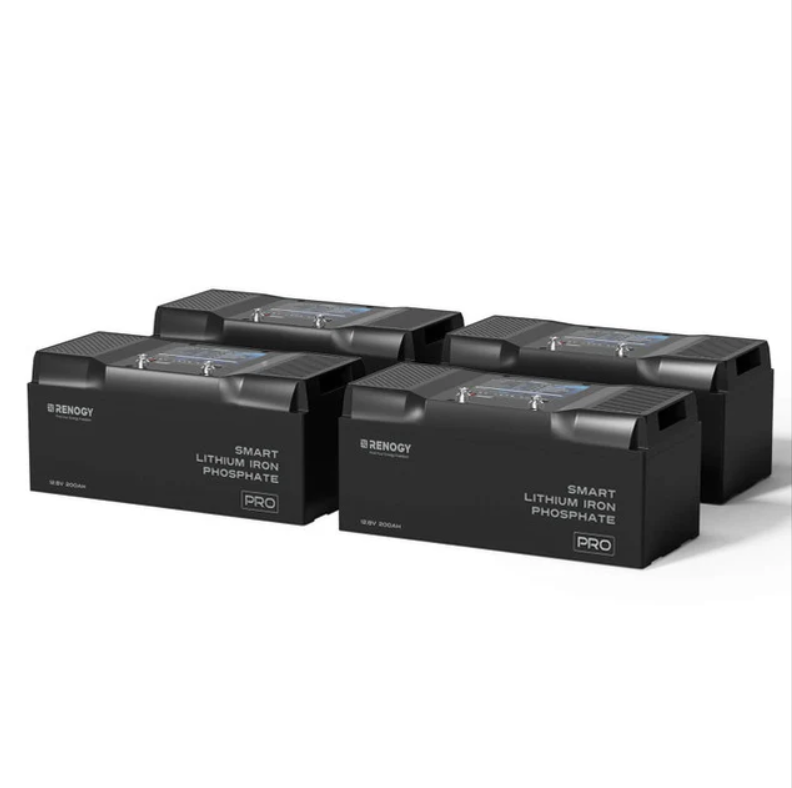

The Renogy 12V 200Ah Pro Smart Lithium Iron Phosphate Battery is a premium deep-cycle energy storage solution designed for off-grid systems, RVs, marine installations, and backup power applications. Built with advanced LiFePO₄ (Lithium Iron Phosphate) chemistry, this battery delivers long cycle life, high reliability, and superior safety. Bluetooth connectivity enables real-time monitoring through the Renogy app, while the self-heating function ensures reliable performance in cold climates by maintaining optimal operating temperatures.
High-Capacity 12V/200Ah Battery:
Provides 2,560 Wh of usable energy ideal for off-grid systems, solar setups, and RV power storage.
LiFePO₄ Chemistry:
Long-lasting, stable, and safe battery cells with a 5000-cycle life at 80 % depth of discharge.
Smart Bluetooth Monitoring:
Built-in Bluetooth lets you monitor battery status (SOC, voltage, temperature, etc.) from your smartphone via the Renogy app.
Self-Heating Function:
Automatically activates when battery temperature falls below ~5 °C (41 °F) with sufficient charge current, helping maintain performance in cold conditions.
IP67 Protection:
Rated IP67 for water and dust resistance, suitable for rugged environments.
Robust Terminal Hardware:
Includes both standard and long M8 terminal bolts for flexible installation.
Expandable Storage:
Supports parallel connection of up to eight batteries to scale energy capacity for larger systems.
Safety & Certification:
UL, FCC, CE, PSE, and UKCA certifications ensure compliance with major safety standards.
Plug-and-Play Setup:
Install in your energy system by connecting to your inverter/charger using proper gauge cable sized for 200 A continuous current.
Positioning & Clearance:
Leave at least 1.97–3.94 in (50–100 mm) of clearance above the battery and ≥7.87 in (≥200 mm) on the busbar side for ventilation and safe access.
Parallel Configuration:
When connecting multiple units in parallel, ensure cables are of equal length and gauge to maintain balanced performance.
Temperature Considerations:
The self-heating function requires a stable charge current to operate. In cold environments, ensure your charging sources can deliver sufficient current for activation.
Inverter Compatibility:
Pair with a quality inverter that supports LiFePO₄-specific charging profiles for optimal charging efficiency and battery health.
Dimensions: 18.4 × 8.4 × 8.2 in (467 × 212 × 208 mm)
Weight: ~50.7 lbs (23 kg)
Terminal Bolt Sizes:
Standard: M8 × 1.25 × 12 mm
Long: M8 × 1.25 × 16 mm
Renogy products may be returned within 30 days of delivery for a refund, provided the following conditions are met:
Product is unused, uninstalled, and in original condition
All original packaging, accessories, manuals, and components are included
Proof of purchase is provided
The following items are not eligible for return unless defective or damaged upon arrival:
Installed or used products
Clearance or final-sale items
Customized or special-order products
All returns must be approved before being sent back. Unauthorized returns may be refused.
To start a return, contact us with:
Order number
Product name
Reason for return
Photos (if applicable)
Refunds are issued to the original payment method
Shipping fees are non-refundable
Refunds are processed after inspection and approval
Processing time: 5–10 business days
Customer is responsible for return shipping unless the product is defective or incorrect
We strongly recommend using a trackable shipping method
If your Renogy product arrives damaged, defective, or incorrect, notify us within 7 days of delivery.
Please provide:
Order number
Description of the issue
Clear photos or video showing the damage or defect
Once verified, we will coordinate with Renogy to provide:
A replacement, or
A refund, depending on the situation
Renogy products are covered by Renogy’s official manufacturer warranty, which varies by product type.
Lithium Batteries: Up to 5 years
Solar Panels: Up to 10–25 years (performance-based)
Charge Controllers & Inverters: 1–3 years
Accessories: 1 year
(Warranty duration depends on the specific product model.)
Manufacturing defects
Material or workmanship issues under normal use
Improper installation or wiring
Physical damage, misuse, or abuse
Unauthorized modifications
Normal wear and tear
Damage caused by external factors (fire, flooding, lightning, etc.)
Warranty claims may require:
Proof of purchase
Serial number
Photos or diagnostic information
Approved warranty claims may result in:
Repair
Replacement
Partial refund (at Renogy’s discretion)
Installation must follow Renogy’s official installation guidelines
Products installed by uncertified installers may void the warranty
Warranty coverage applies only to the original purchaser
Warranty is non-transferable
For returns, refunds, or warranty support, contact our support team.
We work directly with Renogy to ensure your issue is handled quickly and fairly.
